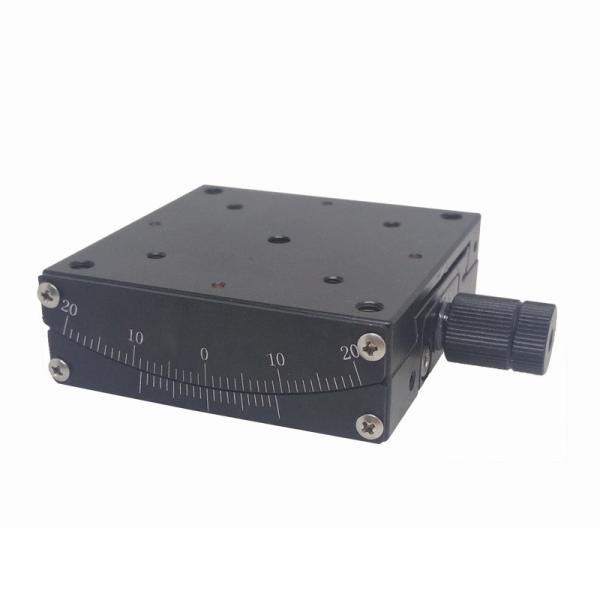

Angle Adjusting Goniometer Table

Brand Name : PDV

Model Number : PT-SD4025, PT-SD4040, PT-SD4060, PT-SD5050, PT-SD5068, PT-SD6035, PT-SD6060, PT-SD6080

Place of Origin : Beijing, China (Mainland)

MOQ : 1piece

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 1-2 weeks

Platform Size : 40mm×40mm

Rotation center height : 25±0.1

displacement distance : ±20°

Rotate 1 turn : ≈2.2°

Load bearing : 3

Weigth : 0.18kg

Contact Now

Worm And Worm Angle Adjusting Platform , Manual Goniometer Stage PT- D4025

Manual Angle table is a device for precise rotation of objects in a small Angle range, rotating around a fixed point in space. An angular displacement table is similar to a linear displacement table, but instead of providing linear movement, it rotates around a fixed point above the mounting surface of the displacement table.

The manual Angle position table is designed for the distance between the rotation point and the mounting surface. Different Angle displacement table models can be stacked to achieve the XY configuration, and both displacement table can rotate around the same point.

Product features:

Manual Angle table with arc V roller guide and worm drive.

Table stable and reliable operation, high sensitivity, with self-locking function, the product is suitable for manual Angle adjustment has high requirements of the field.

The mounting holes of various standard holes on the table are suitable for different needs. The standard fixing holes below are convenient to connect it with other slide tables to form a multidimensional slide table.

Product parameters:

Specification	Platform size	Rotation center height	displacement distance (angle)	Rotate 1 turn(Mobility)	operating load (KG)	weight	Material
PT-SD4025	40×40	25±0.1	±20°	≈2.2°	3	0.18	brass
PT-SD4040	40×40	40±0.1	±15°	≈1.89°	3	0.24	brass
PT-SD4060	40×40	60±0.1	±10°	≈1.33°	3	0.24	brass
PT-SD5050	50×50	50±0.1	±10°	≈1.55°	3	0.36	brass
PT-SD5068	50×50	68±0.1	±10°	≈1.2°	3	0.36	brass
PT-SD6035	60×60	35±0.1	±25°	≈2.0°	6	0.72	brass
PT-SD6060	60×60	60±0.1	±20°	≈1.3°	6	0.58	brass
PT-SD6080	60×60	80±0.1	±15°	≈1.0°	6	0.58	brass

Product Dimension Map:

PT-SD4025

PT-SD4040

PT-SD4060

PT-SD5050

PT-SD5068

PT-SD6035

PT-SD6060

PT-SD6080
